Description
Click Here for Photometric Reports

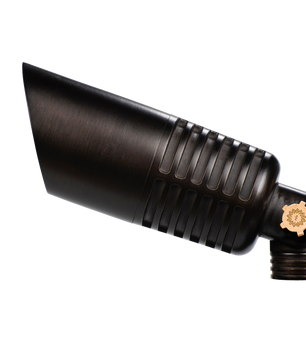

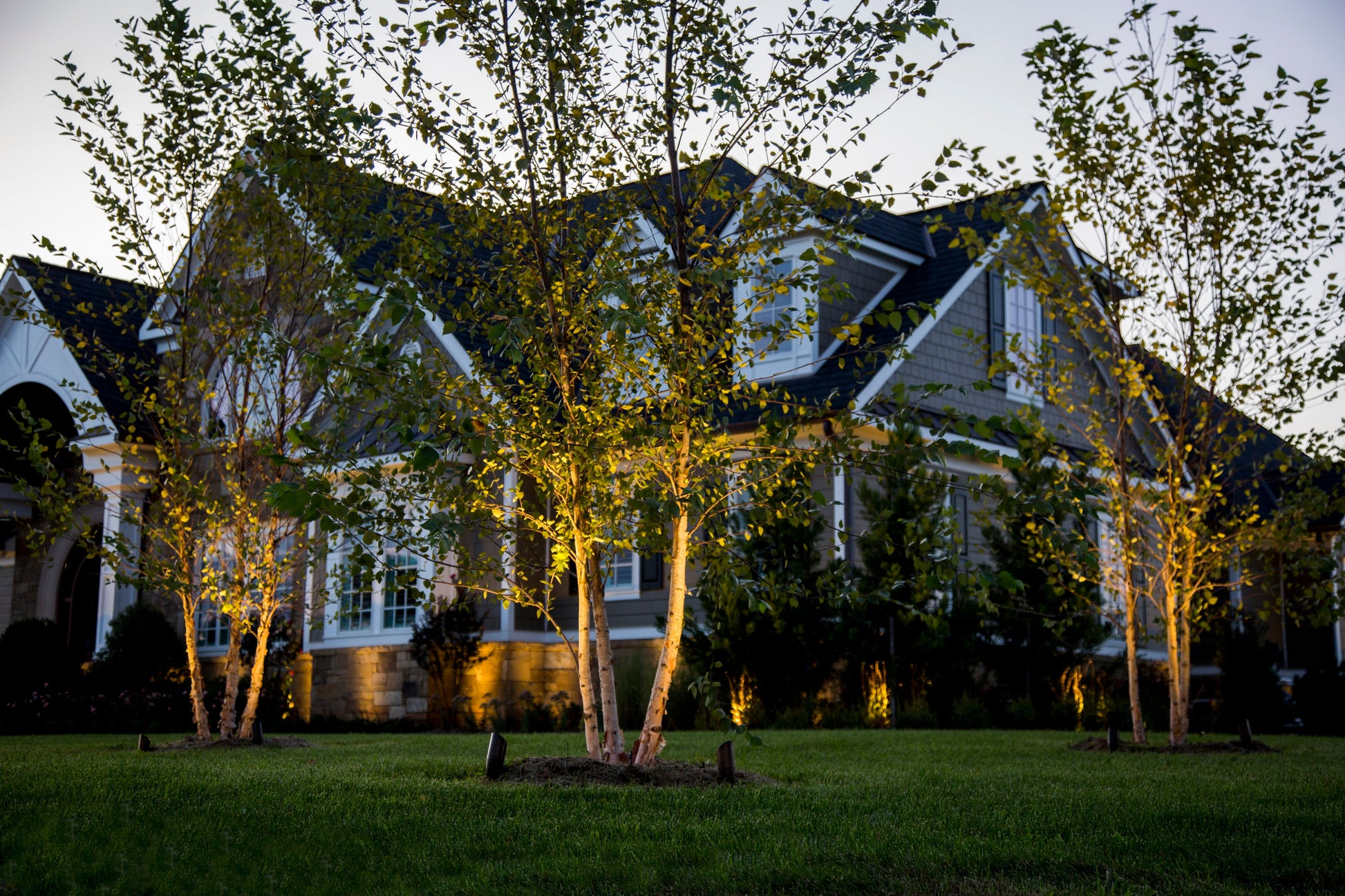

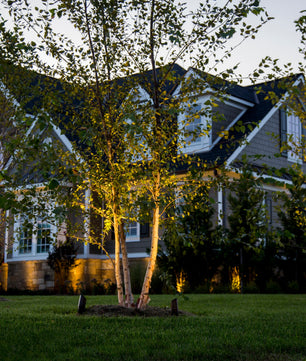

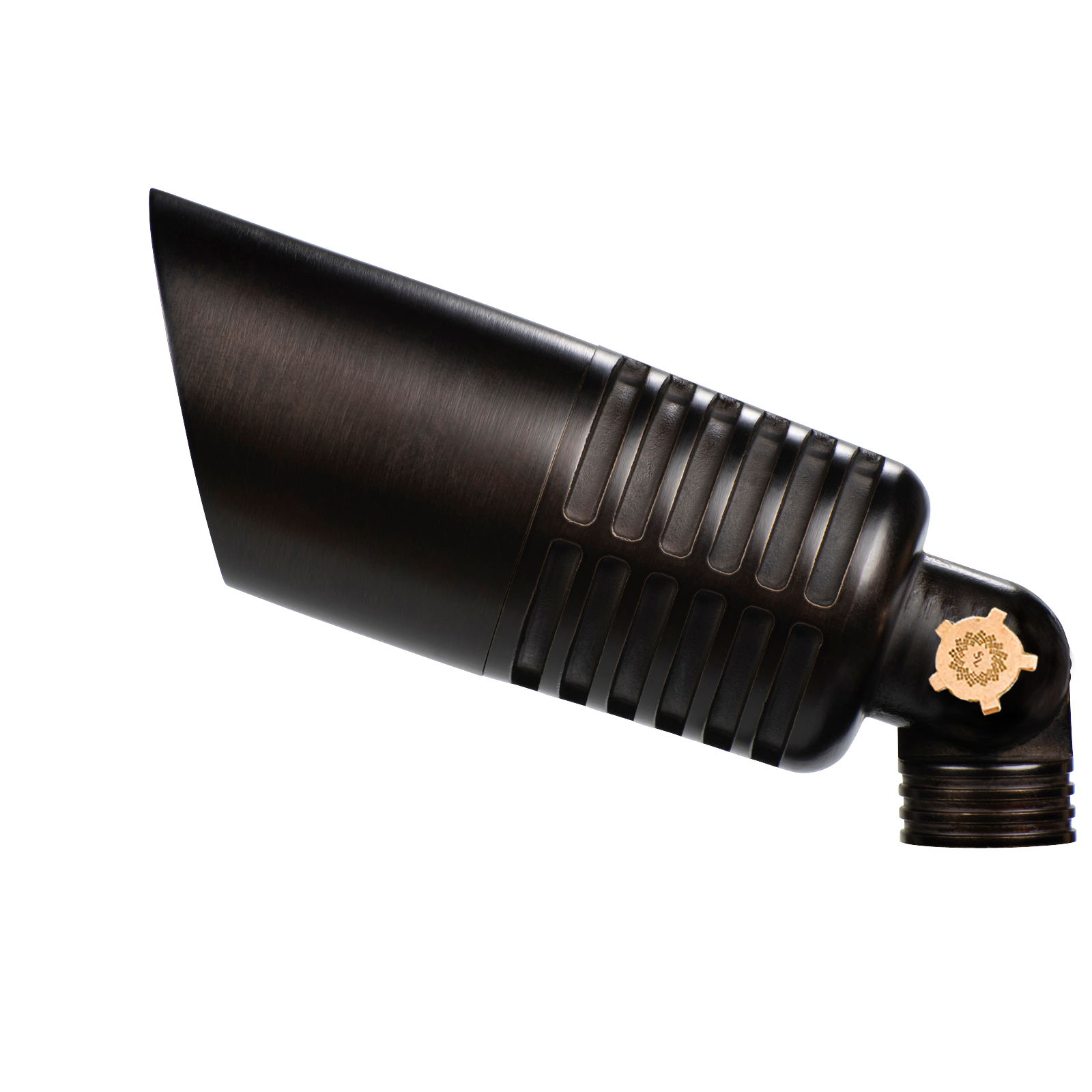

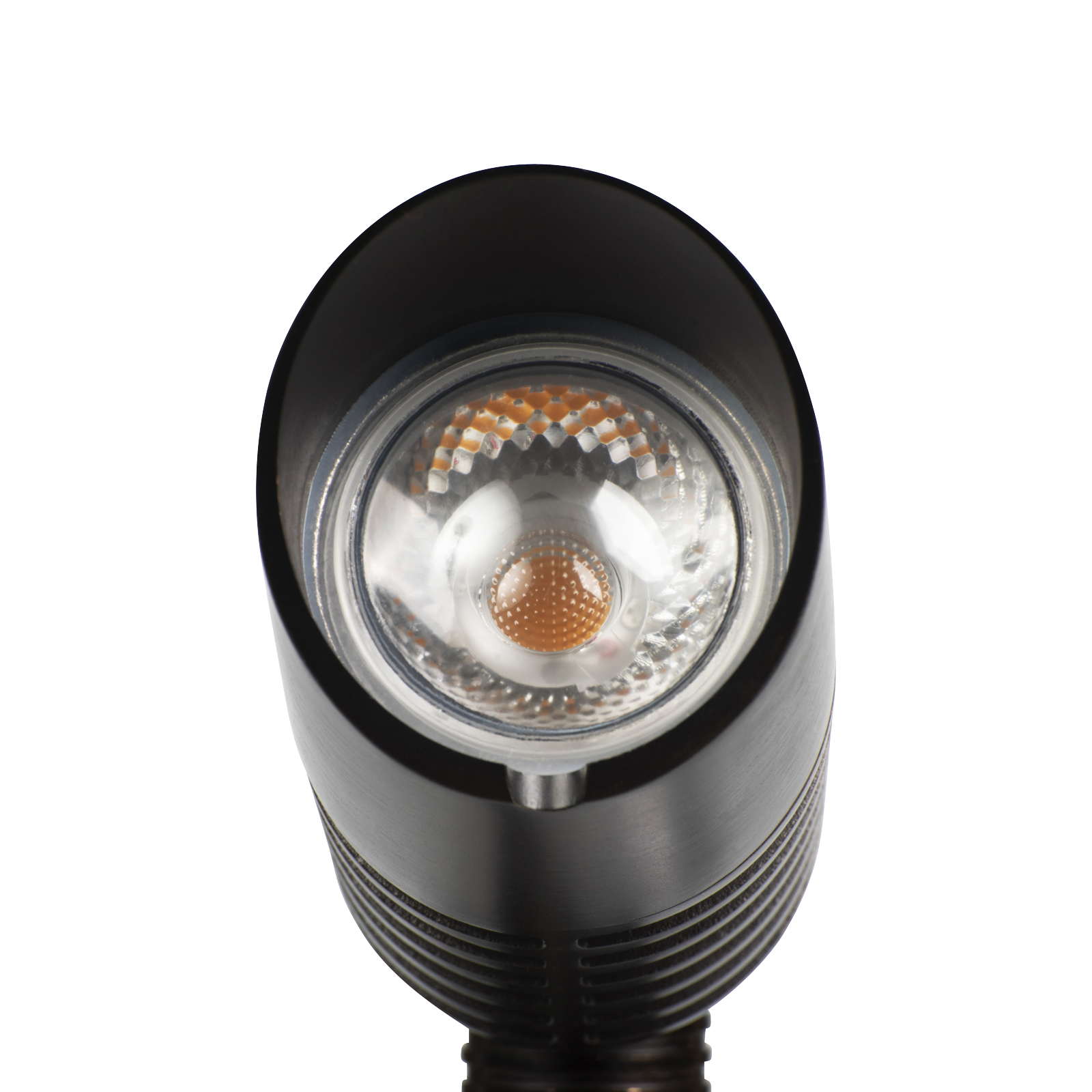

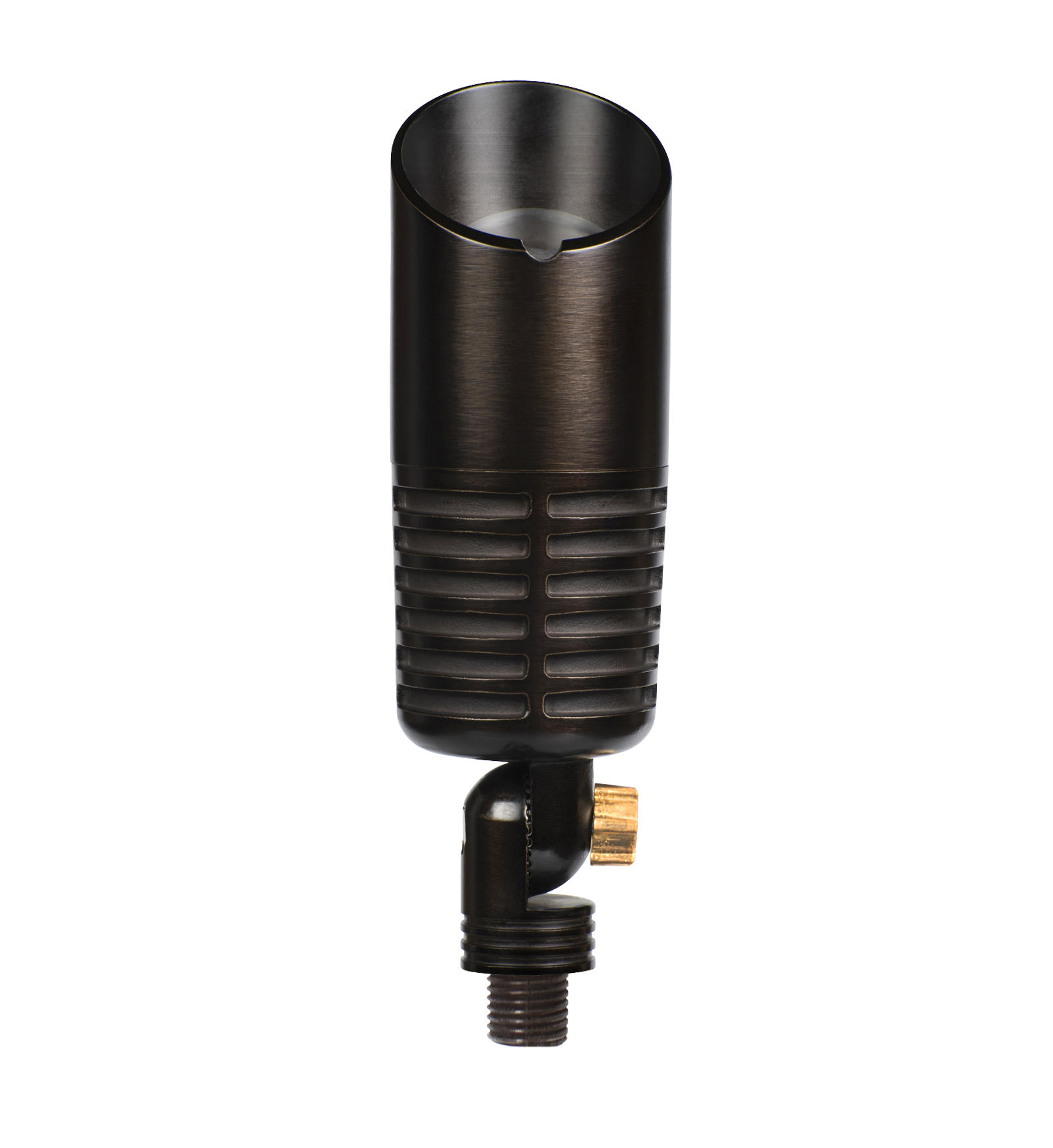

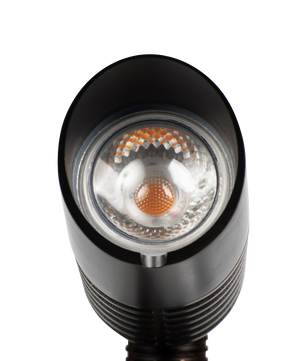

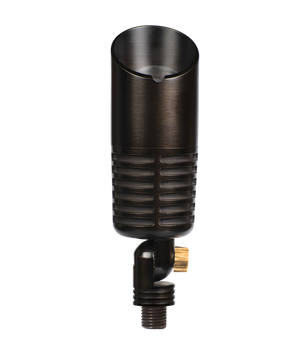

The SL01 Up Light is our signature luminaire, designed to be sleek, versatile and compact. It’s the ideal luminaire for illuminating walls, flags, trees, architectural POI’s, inset corners, and more. With a seamless locking design at its base, adjustable lumen output, and removable optics, you’re sure to get the right look for every project with this luminaire.
Material: Marine-Grade, Virgin Brass with a UV Coating
Finish: Antique Bronze
Adjustable lumen options: 760lm, 655lm, 545lm, 455lm, 350lm, 245lm
Certifications & Listings: ETL, UL1838, IP65 rated
Case Quantity: 10 Luminaires
Features:
- Change field angle with removable drop in optics, available in 25°, 40° (standard), 50°, 60°, or 80 (no optic)
- Constructed with high quality CREE LED chips
- Light color temperature of 2700, 3000, or 5000 Kelvin
- Two plugs to keep insects out
- Includes 10′ wire lead
- Single LED chip for greater lux control
- Seamless locking design (middle of fixture)
- 9-15 AC voltage range
- 2.9W (min) - 11.3W (max)
- CRI: 98+
- TM-30 Rf: 94
- TM-30 Rg: 99
SL01 Adjustable Lumen Settings (Pins on Driver):
- No Pins Up: 760 lm (max)
- 1 Pin Up: 655 lm
- 2 Pins Up: 545 lm
- 3 Pins Up: 455 lm
- 4 Pins Up: 350 lm
- All 5 Pins Up: 245 lm (min)
